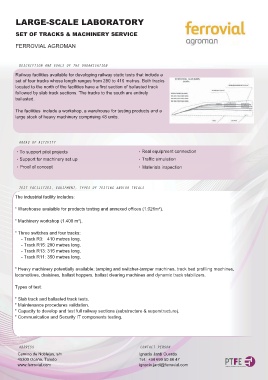

Page 85 - Laboratorios, Equipos e Instalaciones en España disponibles para el Sector Ferroviario

LARGE-SCALE LABORATORY

SET OF TRACKS & MACHINERY SERVICE

FERROVIAL AGROMAN

DESCRIPTION AND GOALS OF THE ORGANISATION

Railway facilities available for developing railway static tests that include a
set of four tracks whose length ranges from 280 to 410 metres. Both tracks
located to the north of the facilities have a first section of ballasted track
followed by slab track sections. The tracks to the south are entirely
ballasted.

The facilities include a workshop, a warehouse for testing products and a
large stock of heavy machinery comprising 48 units.

AREAS OF ACTIVITY

t To support pilot projects t Real equipment connection
t Support for machinery set up t Traffic simulation

t Proof of concept t Materials inspection

TEST FACILITIES, EQUIPMENT, TYPES OF TESTING AND/OR TRI"LS

The industrial facility includes:

* Warehouse avalaible for products testing and annexed offices (1.026mð).

* Machinery workshop (1.400 mð).

* Three switches and four tracks:
- Track R3: 410 metres long.
- Track R15: 280 metres long.
- Track R13: 315 metres long.
- Track R11: 350 metres long.

* Heavy machinery potentially available: tamping and switcher-tamper machines, track bed profiling machines,
locomotives, draisines, ballast hoppers, ballast clearing machines and dynamic track stabilizers.

Types of test:

* Slab track and ballasted track tests.
* Maintenance procedures validation.
* Capacity to develop and test full railway sections (substructure & superstructure).
* Communication and Security IT components testing.

ADDRESS CONTACT PERSON
Camino de Noblejas, s/n Ignacio Jardí Cuerda
45300 Ocaña, Toledo Tel.: +34 699 50 86 47
www.ferrovial.com ignacio.jardi@ferrovial.com
